VECTOR OPTICS CO50 1X50MM THERMAL IMAGE SCOPE 3-IN-1: RIFLESCOPE/MONOCULAR + CLIP ON
Couldn't load pickup availability
The CO50 thermal module is the centre of the system with its 50mm lens system and 640 × 512px . The matrices are built using 12-um technology, which makes it possible to obtain a greater optical magnification without increasing the external dimensions of the device.
Based on VOx (vanadium oxide) technologies, with high thermal sensitivity, 35 NETD performance of the sensor ensures the detection of small temperature changes and excellent performance in harsh conditions. This increases the detection range of heat-contrast objects and makes it possible to “see the substrate”
You will be able to see the target even in extreme surveillance conditions such as snow, rain, fog/high humidity and at high ambient temperatures (from 30 degrees Celsius).
Frame refresh rate - 50 Hz.
4 different image display colour palettes (hot white, hot red, hot black and hot iron).
8x digital zoom.
3 sensor calibration modes - automatic, semi-automatic, and manual.
The device is made according to the international standard for housing protection - IP67 (sealed, protected from dust and dirt, waterproof). The body is made of aluminium alloy, which provides increased shock resistance. Withstands heavy recoil in small arms magnum calibres up to and including .375 H&H. The operating temperature range of the environment is from -30 to +55 degrees. Mounting the sight is possible on various brands of weapons using mounts (Weaver/Picatinny, MAK-adapter)
The sight has a compartment for 4 CR123A batteries or batteries of the same size. The device can operate from any number of installed batteries within the available 4 places, even from one battery.
Package includes:
Thermal image scope x 1
Thermal Imager Eyepiece Adapter x1
Scope Objective Adapter x1 (40A or 50A or 60A)
Rail x 1
- Due to the safety of logistics and transportation, the package does not contain batteries, which can be purchased by yourself. （4 batteries ；Applicable type: CR123A, RCR123A）
- Multiple scope objective adapters are required and can be purchased separately.
| Thermal Imaging | Image Sensor | Uncooled Focal Plane Arrays | |
| Resolution | 640 × 512 | ||
| Frame Rate | 50 Hz | ||
| Pixel Interval | 12 μm | ||
| Response Waveband | 8 μm to 14 μm | ||
| NETD | less than 35 mK (25 °C, F#=1.0) | ||
| Focal Length | 50 mm | ||
| Detaction Distance | 2600m | ||
| IFOV | 0.24 mrad | ||
| Field of View | 8.78 ° × 7.03 ° | ||
| Min. Focusing Distance | 5m | ||
| Aperture | F1.0 | ||
| Magnification | 1x | ||
| Image Display | Display | 1024x768, 0.39 inch, OLED | |

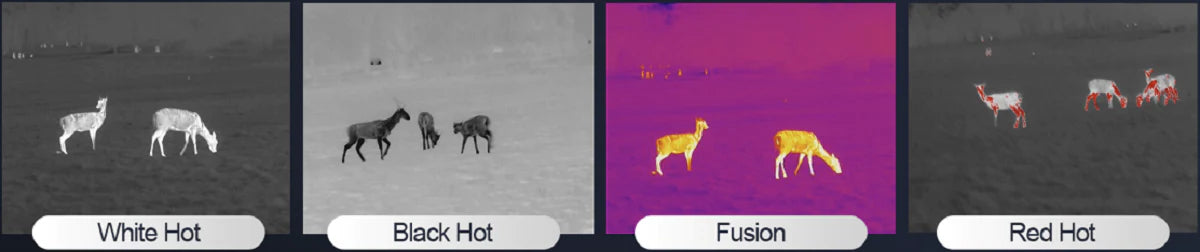

| Palettes | Black hot, white hot, red hot, fusion | ||
| Exit Pupil | 22mm | ||
| Eye Relief | 10mm | ||
| System Function | Record Video | On-board video recording | |
| Capture Snapshot | Yes | ||
| Standby Mode | Yes | ||
| Homogeneity Correction | Auto, External Correction | ||
| Storage Capacity | Built-in EMMC (64 GB) | ||
| Picture-in-Picture | Yes | ||
| Defect Point Correction | Yes | ||
| Hot Spot | Yes | ||
| Hot Spot Tracking | Yes | ||
| Cross-Line Reticle | Yes | ||
| Range Finding Function | No | ||
| Power Supply | Battery Type | Replaceable Applicable type: CR123A, RCR123A |
|
| Battery Operating Time | 6.5 h (25 °C, with hotspot off) | ||
| Battery Capacity Display | Yes | ||
| Anti-reverse Battery Connection | Yes | ||
| Overvoltage Protection | Yes | ||
| Type-C Power Bank | 5 VDC, 2 A Supports external power supply |
||
| General | Work Temperature/Humidity | -20 °C to 55 °C (-4 °F to 131°F) | |
| Protection Level | IP67 | ||
| Vibration & Shock | 750 g/1 ms | ||
| Dimension | 192×76×69mm | ||
| Weight | 583 g without eyepiece and batteries | ||
| Port | Type-C |
||
Clip-On Scope Clamp Sizes:
40A = Suitable for Scopes with a 47mm-51mm Objective.
50A = Suitable for Scopes with a 55mm-59mm Objective.
60A = Suitable for Scopes with a 62mm-66mm Objective.
Advise at checkout which scope clamp is required. For example, 50A...
